CNC series of numerically controlled drilling and milling machines adopt an integral bed structure made of HT300 material, which features strong rigidity and high stability. They are equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis. Combined with the CNC numerical control system, they can achieve three-axis linkage and complete the drilling and milling processing of complex parts.

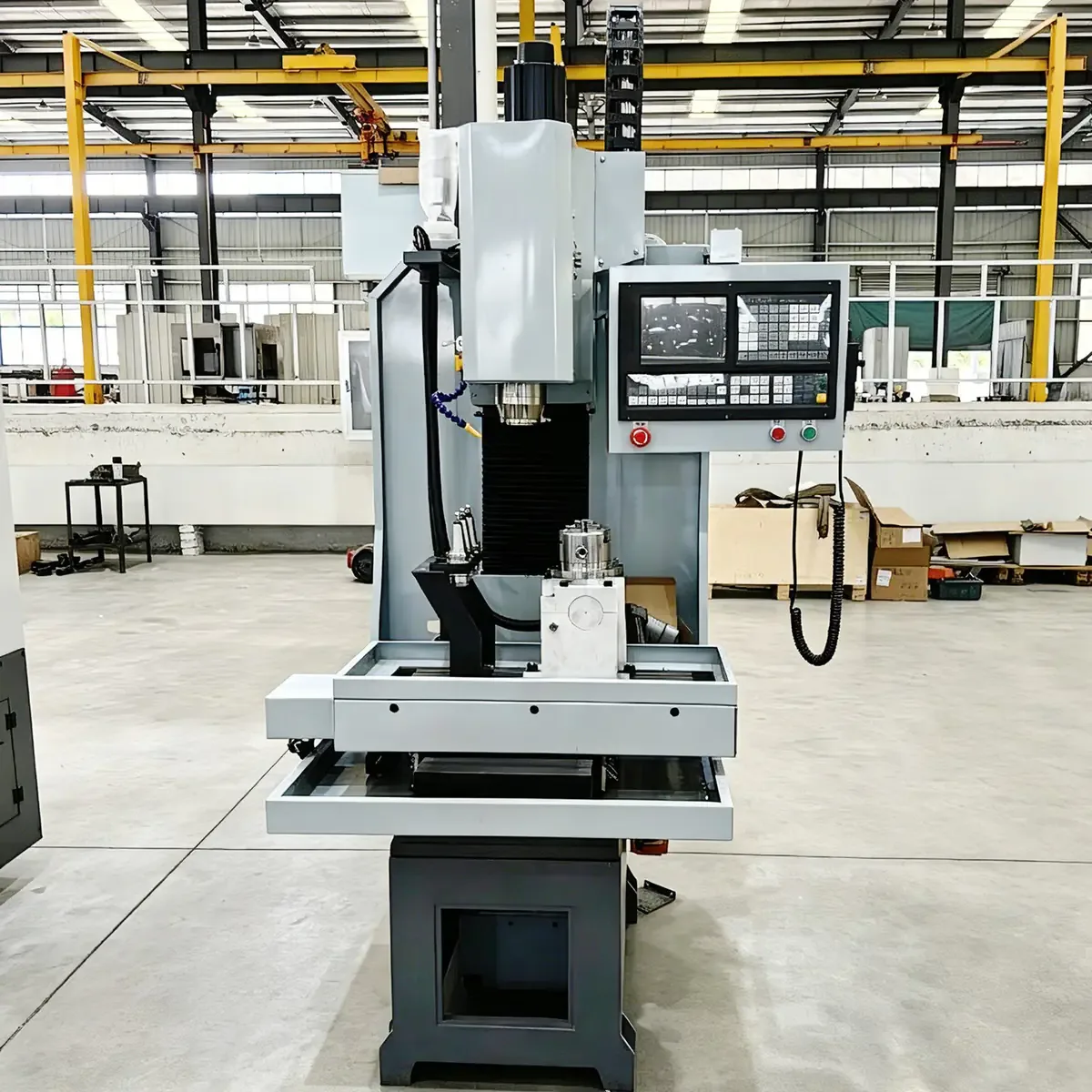

CNC Series – HT300 integral bed, three-axis linkage
| Model | CNC530 |
| Workbench size | 900x280mm |
| Workbench T-slot (number - size * pitch) | 3-14x80mm |
| Max. load capacity of the workbench | 150KG |
| X-axis travel distance | 500mm |
| Y-axis travel distance | 300mm |
| Z-axis travel distance | 500mm |
| Distance from the spindle face to the worktable surface | 100-600mm |
| X,Y,Z fast movement speed | 25m/min |
| X axis Max. torque of motor | 25.2N.m |
| Y axis Max. torque of motor | 25.2N.m |
| Z axis Max. torque of motor | 34.5N.m |
| Max. spindle speed | 8000 rpm |
| Spindle taper hole | BT30 / BT40 |
| Spindle motor power | 3.7/5.5 KW |
| Tool magazine capacity | （Optional configuration） Umbrella-Type 12Tools |
| Max. weight of cutting tools | 8 KG |
| Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) cm | 155x155x210 |
| Standard weight | 1.8 T |
